鎖付參數界面Lock parameters interface:

每顆螺絲的鎖付轉速,扭力值等數據可精準設置可選配:附帶標準版軟件,提供后續接入MES系統的軟硬件接口。The locking speed, torque value and other data of each screw can be accurately set. Optional: With standard version software, it provides hardware and software interfaces for subsequent access to MES system.

工作記錄界面Work record interface:

記錄每一顆螺絲的擰緊過程參數和擰緊結果最多保持21000條記錄,超過21000記錄后，系統自動維護記錄刪減。Record the tightening process parameters and tightening results of each screw. A maximum of 21000 records are kept. When more than 21000 records are recorded, the system automatically deletes the maintenance records.

多種視覺檢測自動糾偏功能保證鎖付精度A variety of visual detection automatic correction functions ensure the accuracy of the lock:

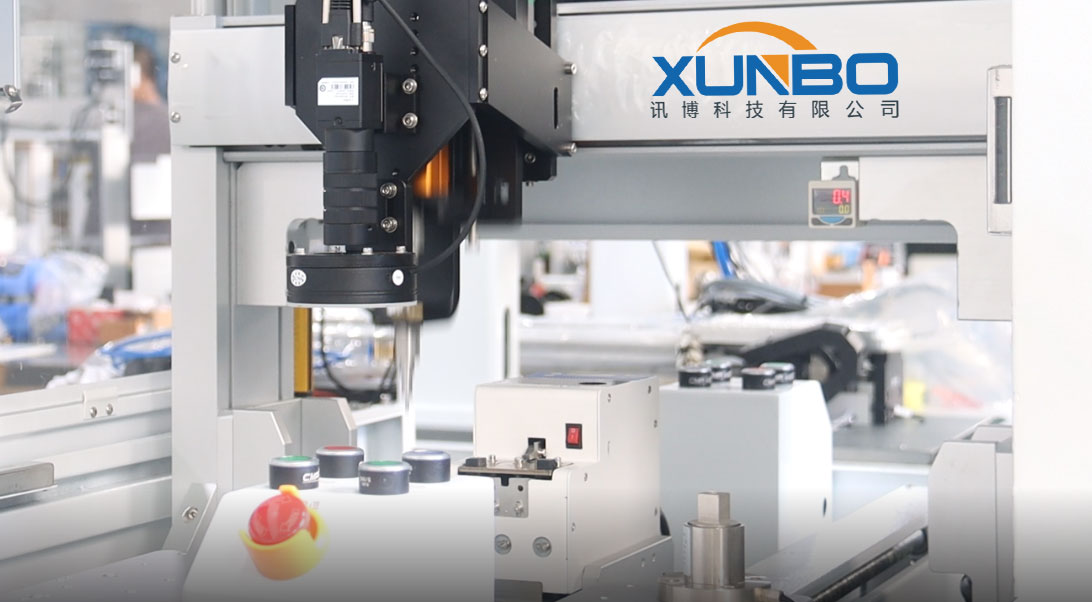

柜式前后雙工位視覺鎖螺絲機-內部特寫Cabinet type front and rear double station visual locking screw machine - inside close-up

1、支持單mark、雙mark、圓孔定位多種視覺算法;Support single mark, double mark, round hole positioning of a variety of visual algorithms;

2、支持激光測高,浮鎖精度士0.02mm,精準檢測每顆螺絲鎖付狀態；Support laser height measurement, float lock accuracy of 0.02mm, accurate detection of each screw lock status；

3、支持在線、離線模式,配合流水線盒機械手作業;Support online, offline mode, with line box manipulator operation;

4、支持dxf導入位坐標,提高編程效率;Support dxf import bit coordinates, improve programming efficiency;

5、支持產品編碼掃碼,鎖付全過程數據支持上傳MES系統;Support product code scanning, lock and pay the whole process data support upload MES system;

6、支持多種取料方式和鎖付方式;Support a variety of materials and lock payment methods;

7、支持多電批工作；Support multi-batch work；

文件記錄界面File recording interface:

1.記錄每一顆螺絲的鎖付時間,擰緊過程參數和擰緊結果可實現精準查詢;Record the locking time of each screw, tightening process parameters and tightening results can achieve accurate query;

2.設備產量,完成量一目了然。Equipment output, complete quantity at a glance.

波形對比界面Waveform comparison interface:

顯示每顆螺絲鎖付時整個過程的詳細波形數據,采樣精度3ms框選部分區域放大波形,右鍵點擊返回波形上一次放大顯示狀態。Display the detailed waveform data of the whole process when each screw is locked. The sampling accuracy is 3ms. Select some areas in the box to enlarge the waveform.
